                                    <p id="SE-37bc0672-f519-4aee-82cb-ad2d6efa533a"><span id="SE-e030348f-3175-48aa-9199-0adc64589bee">하이제니스 몰에서 판매하는 USB to CAN 분석기들은 아래와 같은 방법으로 </span><span id="SE-3e825d02-4b62-4808-ac57-80fda8452bd7">USB OTA를 통해 slcan이나 candlelight로 변경할 수가 있다.</span></p><p id="SE-54435eff-df67-4e90-b002-0776a64c2378"><span id="SE-a79a366a-7539-4b26-b29e-65b92d3ea7ce">​</span></p><p id="SE-664e1336-58aa-4922-9980-eb00c0122382"><span id="SE-c2e769ef-fb7d-4baa-941a-797f88da6b49">여기서는 USB-A to CAN 분석기로 업데이트하는 방법을 다뤄볼 것이고 </span><span id="SE-f1b9c027-43cb-47d9-84ed-938b2d1f9196">업데이트 방식은 거의 동일하니 참고하길 바란다.</span></p>
                            </div>                <div id="SE-e8c22fdb-8047-4402-a3d8-801788b9ba62">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-e8c22fdb-8047-4402-a3d8-801788b9ba62&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMTk3/MDAxNzU3NTA3MjA0NjU4.GXQ_xZwd7mhlSG5rRIuAX14ODOyVXPdRYl3TYOY4mYkg.eiDzK80HqomA800NC73o5eDcx1yTbIAWtUAob12CSz8g.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;709&quot;, &quot;originalHeight&quot; : &quot;261&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMTk3/MDAxNzU3NTA3MjA0NjU4.GXQ_xZwd7mhlSG5rRIuAX14ODOyVXPdRYl3TYOY4mYkg.eiDzK80HqomA800NC73o5eDcx1yTbIAWtUAob12CSz8g.PNG/image.png?type=w800" data-width="693" data-height="255" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-80c834b1-e431-4eb9-b38a-a6e367cd2d3a">

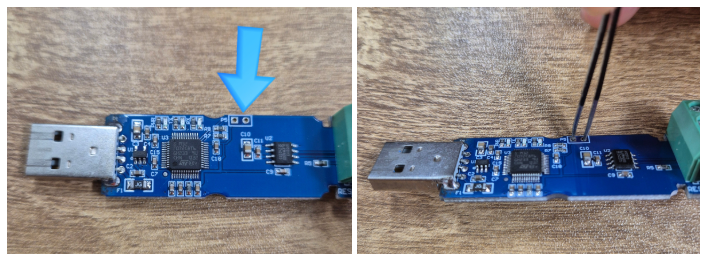

                                    <p id="SE-f6db7c0b-d74d-475e-9159-7e69ed8dde5c"><span id="SE-682f3a06-81d7-4af1-9b66-1921ed10efd0">동글에 보면 위와 같이 BOOT 관련 점퍼를 패드가 보일 것이다. 여기를 핀셋 등을 이용해 쇼트를 시킨다.</span></p><p id="SE-cb2028c7-4890-47b0-8e4d-84af5b0d2153"><span id="SE-fb38aaa5-e575-4aab-b62e-f720d009b111">그다음 아래와 같이 전원을 인가해 보자.</span></p>
                            </div>                <div id="SE-ac037041-11b9-4b22-9cf1-628479845c5e">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-ac037041-11b9-4b22-9cf1-628479845c5e&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfNzIg/MDAxNzU3NTA1NjkxNTQy.T6D_bJlLtlSvan65OxlOsHswPBktDcmZ5EfHa1t9qIEg._Knij9yKwqVBpO91h920I0DSzATqaSLnS3qevocdR-gg.JPEG/SE-ac037041-11b9-4b22-9cf1-628479845c5e.jpg&quot;, &quot;originalWidth&quot; : &quot;600&quot;, &quot;originalHeight&quot; : &quot;449&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfNzIg/MDAxNzU3NTA1NjkxNTQy.T6D_bJlLtlSvan65OxlOsHswPBktDcmZ5EfHa1t9qIEg._Knij9yKwqVBpO91h920I0DSzATqaSLnS3qevocdR-gg.JPEG/SE-ac037041-11b9-4b22-9cf1-628479845c5e.jpg?type=w800" data-width="693" data-height="518" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-80998b26-a110-4052-95ab-ac8daa23b4e1">
                            <p id="SE-ae8ea594-9b3f-42e0-a0d3-249988b0b4a1"><span id="SE-315b692d-6389-46ef-a62c-85950adc283a">그럼 아래와 같이 [범용 직렬 버스 장치] - [STM32 BOOTLOADER]라고 장치가 잡힐 것이다.</span></p>
                        </div>                <div id="SE-bbeb6c64-f516-4276-84a4-7b9218ad211b">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-bbeb6c64-f516-4276-84a4-7b9218ad211b&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMjM5/MDAxNzU3NTA1NTU0MzA0.zv4NZHHgguKcU0WjsAT66DUN_4zGgS25v611MhcfpDAg.jEUCGjJDupvY7NK4AaTxCVcGOkDGtahtRf_I5Ogm5Awg.PNG/SE-bbeb6c64-f516-4276-84a4-7b9218ad211b.png&quot;, &quot;originalWidth&quot; : &quot;320&quot;, &quot;originalHeight&quot; : &quot;349&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMjM5/MDAxNzU3NTA1NTU0MzA0.zv4NZHHgguKcU0WjsAT66DUN_4zGgS25v611MhcfpDAg.jEUCGjJDupvY7NK4AaTxCVcGOkDGtahtRf_I5Ogm5Awg.PNG/SE-bbeb6c64-f516-4276-84a4-7b9218ad211b.png?type=w800" data-width="320" data-height="349" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-85826fe3-feba-4f12-8c93-526a7fd93c9b">
                                    <p id="SE-e0e09403-41d1-469c-aa48-d7d5d95a8d1e"><span id="SE-975763de-8f7d-4bb0-892c-2d1ca24eb2e4">​</span></p><p id="SE-2285a149-6793-4b22-a11a-a2826e7fcaad"><span id="SE-befabe5f-4f03-4978-b24b-2cf96496b971">이제 핀셋은 떼도 좋다.</span></p><p id="SE-8a90c97a-4750-4cdf-96fe-8aaa2539231f"><span id="SE-dbecf869-7195-40ac-9b6f-90a56151e6e1">​</span></p><p id="SE-acb12df1-0e66-429d-a78c-23290da2f704"><span id="SE-728d4697-a796-4478-afd4-41e21d5232ed">다음 자신의 보드 버전에 맞는 링크에 접속해 보자.</span></p><p id="SE-3a301b86-cfdf-4e24-85f9-a2f75c714376"><span id="SE-39fdb9eb-6a22-4e7d-8d40-c2dd9c67ff22">1.0 버전</span></p><p id="SE-f0d2d26f-be9c-4433-9faf-ee5740173e3b"><span id="SE-d5a17190-5e0d-4c9c-825d-b3eeb76a242d"><a href="https://canable.io/updater/canable1.html" data-linktype="text" data-linkdata="{&quot;id&quot;: &quot;SE-d5a17190-5e0d-4c9c-825d-b3eeb76a242d&quot;, &quot;link&quot;: &quot;https://canable.io/updater/canable1.html&quot;}" target="_blank">https://canable.io/updater/canable1.html</a></span></p>
                            </div>

                <div id="SE-12442d0b-a46a-4b7f-9cc1-e58ace30d757">
                            <p id="SE-f2508829-b7e3-4895-91b2-da1fe05d94f3"><span id="SE-b30467d3-68cf-46a7-9128-26fcada4bdbd">보통 CAN-FD 가 아니면 1.0이라고 보면 될 것 같다.</span></p>
                        </div>                <div id="SE-b490c516-9423-4789-bf81-01bb6605efb9">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-b490c516-9423-4789-bf81-01bb6605efb9&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMTQ1/MDAxNzU3NTA1ODQxODI5.jmHbMl_HZdJgslqWI4sqRrhxCj6tMDcsJgy3HiBTxl4g.geggbEXpltki6eR9mZLjYp29rijd48-YlQ_tIaUx2j4g.PNG/SE-b490c516-9423-4789-bf81-01bb6605efb9.png&quot;, &quot;originalWidth&quot; : &quot;870&quot;, &quot;originalHeight&quot; : &quot;601&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMTQ1/MDAxNzU3NTA1ODQxODI5.jmHbMl_HZdJgslqWI4sqRrhxCj6tMDcsJgy3HiBTxl4g.geggbEXpltki6eR9mZLjYp29rijd48-YlQ_tIaUx2j4g.PNG/SE-b490c516-9423-4789-bf81-01bb6605efb9.png?type=w800" data-width="693" data-height="478" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-4a53a0d0-e9c5-4987-bd5b-2e426d5701eb">
                            <p id="SE-bb7ef2b8-d9cd-4a76-b5d9-017638cc2496"><span id="SE-cea3fa99-3fb4-4fee-9067-e210664fa030">위와 같은 페이지가 보이면 slcan 혹은 candlelight를 먼저 선택하고 [Connect and Update]를 클릭하자.</span></p>
                        </div>                <div id="SE-48d380fa-9fea-4b3a-80c6-6d06b5d71987">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-a452a9cb-3aad-4e32-a465-68e509af3bac&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfNzEg/MDAxNzU3NTA1ODUyMzI5.1s-Zw6UlPF76g256owEhLdx2KIztqhdNiPJbwXX67aYg.b7RjZHK6588PXWMdlNsPHpTym8HLuLysxKa_20wFFccg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;454&quot;, &quot;originalHeight&quot; : &quot;453&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfNzEg/MDAxNzU3NTA1ODUyMzI5.1s-Zw6UlPF76g256owEhLdx2KIztqhdNiPJbwXX67aYg.b7RjZHK6588PXWMdlNsPHpTym8HLuLysxKa_20wFFccg.PNG/image.png?type=w400" data-width="454" data-height="453" alt="">
                                    </a>
                                </p>
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-bbdd7bb4-c4e8-466c-930e-e7eddaba60fd&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMjQ4/MDAxNzU3NTA1ODY1MTY5.YZOw_v__AfOq64YSkxfibzfQTNskcBDELGcx_evY9Rgg.RdUTipe3fxIZ3lmFXIXN20-WxY6rU3RrHnnAnQ_-yScg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;446&quot;, &quot;originalHeight&quot; : &quot;447&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMjQ4/MDAxNzU3NTA1ODY1MTY5.YZOw_v__AfOq64YSkxfibzfQTNskcBDELGcx_evY9Rgg.RdUTipe3fxIZ3lmFXIXN20-WxY6rU3RrHnnAnQ_-yScg.PNG/image.png?type=w400" data-width="446" data-height="447" alt="">
                                    </a>
                                </p>
                            </div>                <div id="SE-d296ddab-8d98-430e-9f8c-e9942e128b41">
                            <p id="SE-44001a3c-c5dd-4439-9745-29df45c21a8a"><span id="SE-62b349c5-c630-4129-9215-ec5b6f25472c">그럼 위와 같은 팝업이 나타날 것이다. 여기서 STM32 BOOTLOADER를 클릭 후 [연결] 버튼을 클릭하자.</span></p>
                        </div>                <div id="SE-01fe4232-09ab-45c3-ac35-b60d1d1d2696">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-01fe4232-09ab-45c3-ac35-b60d1d1d2696&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfODMg/MDAxNzU3NTA1ODc5NzU3.7PDcIWLQMflpyKcYZEy7Da_4zB2AiTf36wmAm7SSNzgg.PlEAImEU7iiInf40FYjvfoS_p8jMjurl57mrHs5zKlsg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;415&quot;, &quot;originalHeight&quot; : &quot;398&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfODMg/MDAxNzU3NTA1ODc5NzU3.7PDcIWLQMflpyKcYZEy7Da_4zB2AiTf36wmAm7SSNzgg.PlEAImEU7iiInf40FYjvfoS_p8jMjurl57mrHs5zKlsg.PNG/image.png?type=w800" data-width="415" data-height="398" alt="">
                                    </a>
                                </p>
                        </div>
                                <div id="SE-2f5ce82d-5cd2-4737-90fd-a082728975c1">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-2f5ce82d-5cd2-4737-90fd-a082728975c1&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfOTYg/MDAxNzU3NTA1ODg4ODc3.Yfak0pxVu6Ejrk9PZkd5OwdecjiFfAWKRBQvYQ5l-WUg.hrwSjvlZmG49pqeWHrKBIk1m6_6RH39o5LNMSoIC3zkg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;805&quot;, &quot;originalHeight&quot; : &quot;446&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfOTYg/MDAxNzU3NTA1ODg4ODc3.Yfak0pxVu6Ejrk9PZkd5OwdecjiFfAWKRBQvYQ5l-WUg.hrwSjvlZmG49pqeWHrKBIk1m6_6RH39o5LNMSoIC3zkg.PNG/image.png?type=w800" data-width="693" data-height="383" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-f0a5c34f-bcdc-47af-bdc3-1500c14872d3">
                                    <p id="SE-b192d1ee-e4ec-4789-91f1-a2a687163a86"><span id="SE-72dc9c5b-8e43-417a-9082-f5127301b576">업데이트가 완료되면 위와 같은 메시지를 볼 수 있을 것이다.</span></p><p id="SE-33ee92f6-cc9e-40c9-a659-dbb033e92a9c"><span id="SE-db5b962f-3f3d-4ffe-895f-0a4c7e87029c">​</span></p><p id="SE-df9f419b-67ab-4d98-a982-c3952ddff8e3"><span id="SE-ab46b1cd-e8ca-4f03-86a1-4a6dd6359f81">USB 장치를 제거했다가 다시 연결 후 장치 드라이버를 확인해 보자.</span></p>
                            </div>                <div id="SE-8f86a681-e204-4dc1-9da3-62bf48da1ab4">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-ea821486-9aa7-4170-888a-e12334f34441&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMjk3/MDAxNzU3NTA2MDA0MjA2.-Yvaea1C5s9mPCkNiV47o0SFBidv4IxFB_ro7kK027gg._MmBIGSgOwjemvL0s0kbjDls6JFl9g-NneHAO1cvsIQg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;244&quot;, &quot;originalHeight&quot; : &quot;131&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMjk3/MDAxNzU3NTA2MDA0MjA2.-Yvaea1C5s9mPCkNiV47o0SFBidv4IxFB_ro7kK027gg._MmBIGSgOwjemvL0s0kbjDls6JFl9g-NneHAO1cvsIQg.PNG/image.png?type=w400" data-width="244" data-height="131" alt="">
                                    </a>
                                </p>
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-1ddedd4e-a7f1-44a3-87e7-69257aac66f8&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMTY3/MDAxNzU3NTA2MDQyOTYx.pWKKb_EPZb5Aa1Habs_reQzy9f0BxwnPYmVs8qqzV8Qg.f8yOr6c7ZKqo5qVce-su3ui5qO4k8Lr3200t7vR4RQsg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;301&quot;, &quot;originalHeight&quot; : &quot;137&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTA5MTBfMTY3/MDAxNzU3NTA2MDQyOTYx.pWKKb_EPZb5Aa1Habs_reQzy9f0BxwnPYmVs8qqzV8Qg.f8yOr6c7ZKqo5qVce-su3ui5qO4k8Lr3200t7vR4RQsg.PNG/image.png?type=w400" data-width="301" data-height="137" alt="">
                                    </a>
                                </p>
                            </div>                <div id="SE-8ff8c014-b1f3-4bdf-be45-79cab2ce88dd">
                                    <p id="SE-7d4cac51-2539-4f3f-a008-bbc49f97bc7e"><span id="SE-92019637-0904-4a5c-8d98-1ef17b298aa4">slcan으로 업데이트하였다면 포트에 [USB 직렬 장치(COMxx)]로 COM 포트가 인식될 것이고</span></p><p id="SE-c0ccb7fe-2dd0-4c76-a7c0-0c61a868eb30"><span id="SE-1966d3e4-c97c-4e45-a202-8b63ea9c3089">candleLight로 업데이트하였다면 범용 직렬 버스 장치에 [candleLight USB to CAN adapter]라고 표시될 것이다.</span></p>
                            </div>    </div></div>
