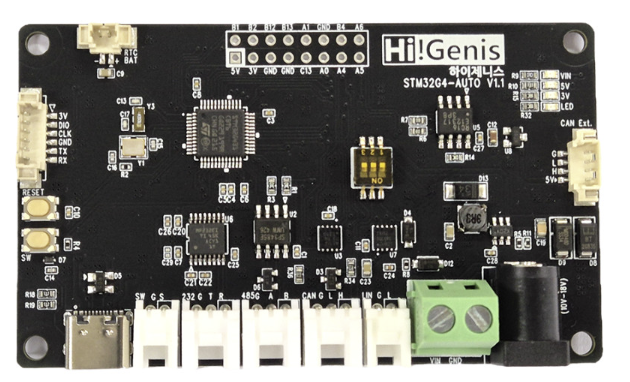

                                    <p id="SE-01116b02-b0c8-44a7-aac8-a8df55cf0d80"><span id="SE-8e3c5b28-8093-4dde-b681-f8b598b74c8b">STM32CubeIDE 외에 Arduino IDE에서도 STM32 보드를 개발할 수 있다.</span></p><p id="SE-8672c30c-cbd7-408b-aad9-40313bfaebf9"><span id="SE-4dd42633-113c-4dba-a2a7-1fc15b10f7a2">따라서 STM32G4-Auto 보드의 기능 테스트를 Arduino IDE 환경에서 진행해 보려고 한다.</span></p><p id="SE-984f592a-2faa-468b-a242-02f280c6f9ba"><span id="SE-778708b5-c8a1-4a44-8bb0-3dcd67c48182">​</span></p>
                            </div>                                <div id="SE-25f5bc76-01d6-4198-82d6-59c7f988ff9e">
                            <p id="SE-946efd95-c394-423e-b3f2-e3599a428e73"><span id="SE-3700a4b6-cee0-4aaa-9a74-63c34375bd2a">아두이노IDE의 왼쪽 상단 → 환경 설정 에 진입</span></p>
                        </div>                <div id="SE-ba4e3cbc-d970-4f7c-b185-5dcb435b77ff">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-ba4e3cbc-d970-4f7c-b185-5dcb435b77ff&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMTY1/MDAxNzYxMzEwMTU5Nzc5.A2Q9MN4sVAPHmEFN4U3NUOxJm2r9zs7VFiLoG6FWXJAg.N-Fe3xWgkJkPttCkbOTT48Frvf2jbHyu0mudNByq8Aog.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;1338&quot;, &quot;originalHeight&quot; : &quot;764&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMTY1/MDAxNzYxMzEwMTU5Nzc5.A2Q9MN4sVAPHmEFN4U3NUOxJm2r9zs7VFiLoG6FWXJAg.N-Fe3xWgkJkPttCkbOTT48Frvf2jbHyu0mudNByq8Aog.PNG/image.png?type=w800" data-width="693" data-height="395" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-c7c5ef33-cebb-4ec1-970b-382474fc6231">
                            <p id="SE-98bdf536-6605-4e66-ab77-2a14fdcbf423"><span id="SE-fa2d7cd1-40d6-42c1-ac9c-4680cbb76cc9">새 창이 뜨면 URL을 아래와 같이 입력해 주고 OK 버튼을 클릭</span></p>
                        </div>                <div id="SE-863729d5-8196-4d4c-98ab-684ba558645a">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-863729d5-8196-4d4c-98ab-684ba558645a&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMiAg/MDAxNzYxMzEwMTY3ODUx.tZ7l4JDV4s0CUXeeMTR1nSPg5E9gEdMY52qWnQFNqhcg.yQFBQSZUqWHDlB0nlUodfy_w0xaGI2eq7LBjGzbX4VMg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;1291&quot;, &quot;originalHeight&quot; : &quot;731&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMiAg/MDAxNzYxMzEwMTY3ODUx.tZ7l4JDV4s0CUXeeMTR1nSPg5E9gEdMY52qWnQFNqhcg.yQFBQSZUqWHDlB0nlUodfy_w0xaGI2eq7LBjGzbX4VMg.PNG/image.png?type=w800" data-width="693" data-height="392" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-7297b2f4-9dc1-46ea-9963-0f8d63d0b1c6">
                                    <p>#Copy this

https://raw.githubusercontent.com/stm32duino/BoardManagerFiles/main/package_stmicroelectronics_index.json
</p>
                                </div>                <div id="SE-40bcb1d8-699b-4cce-8fca-09f38023f1d0">
                                    <p id="SE-334fda37-d9eb-4d84-bcfa-3f14fb4a4f27"><span id="SE-fe09c556-9c8c-41e0-a51b-6458da83f0e0">이후 왼쪽 UI에서 보드같이 생긴 아이콘을 클릭,</span></p><p id="SE-da47be94-508d-44ce-9db3-0b82eb2769ae"><span id="SE-e630142f-247e-42d0-8654-3a9f6bc7d912">그 후 “STM32”를 검색하여 “STM32 MCU based boards..” 라는 보드를 “최신버전”으로 설치,</span></p>
                            </div>                <div id="SE-8fd917ce-4761-40f7-a108-2009ae81822e">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-8fd917ce-4761-40f7-a108-2009ae81822e&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMjg3/MDAxNzYxMzEwMTg0ODMx.zYwBhTxMx41vVTk1i6fdT-BDqtoorAb8_NnWQDohZ3sg.k1dv7XRp12kGQhle4DuVKaQAd5qG8s98hkbfD1XS51Mg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;322&quot;, &quot;originalHeight&quot; : &quot;754&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMjg3/MDAxNzYxMzEwMTg0ODMx.zYwBhTxMx41vVTk1i6fdT-BDqtoorAb8_NnWQDohZ3sg.k1dv7XRp12kGQhle4DuVKaQAd5qG8s98hkbfD1XS51Mg.PNG/image.png?type=w800" data-width="322" data-height="754" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-b89549b7-eee9-4a07-8d5e-9a125f0ab9de">
                            <p id="SE-d41a1765-4048-4931-aa4e-cdd2cd655813"><span id="SE-578b35e9-069c-42d7-ae7f-8c5b9fa04c10">시간은 조금 걸리지만, 설치가 진행된다는 걸 확인할 수 있다.</span></p>
                        </div>                <div id="SE-83498446-a7c8-4000-82c3-6fa703be26ec">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-83498446-a7c8-4000-82c3-6fa703be26ec&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMTMy/MDAxNzYxMzEwMTkzOTY4.SpkmCMMbEinMFkrIi4l-A2naMqD-FyW1ppHx-XrlFwUg.-AUSmkoGtyMAp2-ij0CmMpfov-fpEYJBL2ZjHNuo8sog.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;1268&quot;, &quot;originalHeight&quot; : &quot;716&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMTMy/MDAxNzYxMzEwMTkzOTY4.SpkmCMMbEinMFkrIi4l-A2naMqD-FyW1ppHx-XrlFwUg.-AUSmkoGtyMAp2-ij0CmMpfov-fpEYJBL2ZjHNuo8sog.PNG/image.png?type=w800" data-width="693" data-height="391" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-8b8b166d-a38c-4222-ab88-1c0135bd359f">
                                    <p id="SE-5e437cad-8f47-4beb-be5b-822f4dfe7163"><span id="SE-3ecdd23f-4b58-4b0b-b336-df9046455bca">마지막으로,</span></p><p id="SE-58264260-7635-4eef-97c3-8c506790b4f9"><span id="SE-0196edcb-06c7-4f2d-aa17-f8236133d9ee">화면 상단의 Tools → Board → STM32 MCU based boards → Generic STM32G4 series 선택</span></p>
                            </div>                <div id="SE-e922e484-2a40-4913-b21f-c7afb5ec0c4d">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-e922e484-2a40-4913-b21f-c7afb5ec0c4d&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfNzIg/MDAxNzYxMzEwMjAzNTYy.c920bicQY9AKcQFHpWuyPFnHM3Vy32sRaGEIOZmr6HQg.xMlvC4aWgiRr8ukynYxzzaJLEU_bidtnj8SkwbxgH80g.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;1277&quot;, &quot;originalHeight&quot; : &quot;734&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfNzIg/MDAxNzYxMzEwMjAzNTYy.c920bicQY9AKcQFHpWuyPFnHM3Vy32sRaGEIOZmr6HQg.xMlvC4aWgiRr8ukynYxzzaJLEU_bidtnj8SkwbxgH80g.PNG/image.png?type=w800" data-width="693" data-height="398" alt="">
                                    </a>
                                </p>
                        </div>
                                                <div id="SE-69878f39-10d7-4016-ac0a-18f1cbc34f20">
                                    <p id="SE-9fcffe32-6421-40ff-bd02-3fae114978d6"><span id="SE-fecd0f7b-fa63-4f04-8d49-8446927f8aab">아래 이미지와 같이 STLINK (디버거)에 연결된 Port 번호를 설정</span></p><p id="SE-eccaaec7-4e07-408e-ae6c-2c25f0dd3fe1"><span id="SE-58255569-9cfa-4723-b408-7f4c0ae621a3">(제어판 → 장치 관리자에서 확인 가능)</span></p>
                            </div>                <div id="SE-d1a5ec35-7704-4496-b94d-1c0a255e405c">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-d1a5ec35-7704-4496-b94d-1c0a255e405c&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMjkg/MDAxNzYxMzEwMjE3ODQx.eoW4MNmL4fSaMmMcvzdNsIPcYfU6N6UdXV5B2m-r66gg.KYsU0lqT5BU_tY3IakkziUijr6fHZLOANoxan4-G-ogg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;1273&quot;, &quot;originalHeight&quot; : &quot;726&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMjkg/MDAxNzYxMzEwMjE3ODQx.eoW4MNmL4fSaMmMcvzdNsIPcYfU6N6UdXV5B2m-r66gg.KYsU0lqT5BU_tY3IakkziUijr6fHZLOANoxan4-G-ogg.PNG/image.png?type=w800" data-width="693" data-height="395" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-0b7ae1de-67ca-4244-bc49-0464f49756b8">
                                    <p id="SE-105243fd-8f7b-4812-beae-662b9641a6d4"><span id="SE-bce869f6-ea21-444a-b2be-2b9df34ef0bb">그 후 Board part number를 “Generic G431CBTx”</span></p><p id="SE-29ec7be1-4add-4d3a-8000-56dd27935955"><span id="SE-d5a65ca8-23bd-49ca-9f65-4620b5c79fc0">로 변경하고,</span></p>
                            </div>                <div id="SE-d3bdb51b-46ce-45ac-8045-06ef9cdefd38">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-d3bdb51b-46ce-45ac-8045-06ef9cdefd38&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMTMx/MDAxNzYxMzEwMzg2NTk3.DClv2bXg_hdyYYu1-Dx0Zn8zehnLcWpXVtqxCX4KzhIg.IzMaBXLqvsJ6ja9rZxqX51OpPvlidVPkbY5yRHtNrk0g.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;1282&quot;, &quot;originalHeight&quot; : &quot;736&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNTEwMjRfMTMx/MDAxNzYxMzEwMzg2NTk3.DClv2bXg_hdyYYu1-Dx0Zn8zehnLcWpXVtqxCX4KzhIg.IzMaBXLqvsJ6ja9rZxqX51OpPvlidVPkbY5yRHtNrk0g.PNG/image.png?type=w800" data-width="693" data-height="397" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-ccb797ca-a42f-432c-9f54-75f1d4448f53">
                                    <p id="SE-0ceec3a1-c419-46eb-930a-2ffc17dbf34d"><span id="SE-7e9fbc7b-b168-4567-b268-bf8d2964b6d4">위 이미지와 같이 세 가지 옵션을 이미지와 동일하게 설정</span></p><p id="SE-c7b5ae2a-7053-41b4-9357-21f829e25e91"><span id="SE-233c09d8-54c5-45c5-a6e8-c3a9d4a8692e">위 메뉴 중 "USB CDC" 설정은 USB로 Serial Monitoring 출력을 하기 위함이다.</span></p>
