테라폼으로 네이버 클라우드 네트워크 한방에 구축하는 법

<4> 테라폼-단독 AZ 네트워크

<5> 테라폼-멀티존 네트워크

<4> 테라폼-단독 AZ 네트워크

terraform init

terraform plan

terraform apply -auto-approve

본인 access key. secret key 사용.

네트워크 한방에 구축. az 1개.

테라폼 코드 첨부.

https://brunch.co.kr/@topasvga/4965

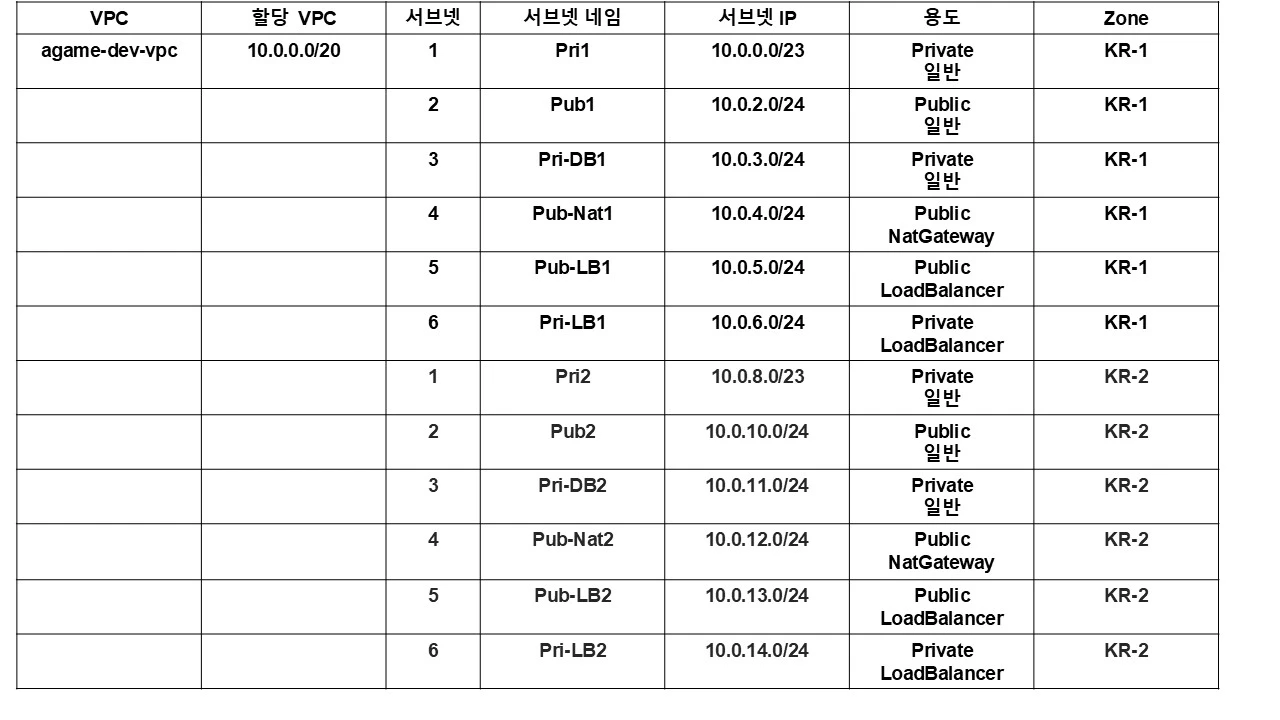

<5> 테라폼-멀티존 네트워크

테라폼 코드 첨부.

로그인키 본인것으로 하세요.

access key. secret key 본인것으로 하세요.

ㅁ

ㅁ

terraform init

terraform plan

terraform apply -auto-approve

[root@test1 2]#

[root@test1 2]# vi var.tf

[root@test1 2]#

[root@test1 2]# ls

backup main2.tf main.tf nat.tf terraform.tfstate var.tf ver.tf

[root@test1 2]#

[root@test1 2]# more *.tf

::::::::::::::

main2.tf

::::::::::::::

resource "ncloud_subnet" "pri_subnet2" {

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 3, 4)

zone = "KR-2"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PRIVATE"

name = var.pribate_subnet2

usage_type = "GEN"

}

resource "ncloud_subnet" "pub_subnet2" {

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4, 10)

zone = "KR-2"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PUBLIC"

name = var.public_subnet2

usage_type = "GEN"

}

resource "ncloud_subnet" "pri_lb_subnet2" {

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4, 14)

zone = "KR-2"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PRIVATE"

name = var.private_subnet_lb2

usage_type = "LOADB"

}

resource "ncloud_subnet" "subnet_pub_lb2" {

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4, 13)

zone = "KR-2"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PUBLIC"

name = var.public_subnet_lb2

usage_type = "LOADB"

}

resource "ncloud_subnet" "subnet_pri-db2" {

name = var.private_subnet_db2

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4 , 11)

zone = "KR-2"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PRIVATE"

// PUBLIC(Public) | PRIVATE(Private)

}

resource "ncloud_subnet" "subnet_pub-nat2" {

name = var.public_subnet_nat2

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4 , 12)

zone = "KR-2"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PUBLIC"

usage_type = "NATGW"

// PUBLIC(Public) | PRIVATE(Private)

}

resource "ncloud_server" "pri_server2" {

name = var.private_server_name2

server_image_number = "107029409"

subnet_no = ncloud_subnet.pri_subnet2.id

server_spec_code = "c2-g3a"

login_key_name = "ncp-web-2025-0807"

}

resource "ncloud_server" "pub_server2" {

name = var.public_server_name2

server_image_number = "107029409"

subnet_no = ncloud_subnet.pub_subnet2.id

server_spec_code = "c2-g3a"

login_key_name = "ncp-web-2025-0807"

}

resource "ncloud_public_ip" "public_ip_scn_02" {

server_instance_no = ncloud_server.pub_server2.id

}

::::::::::::::

main.tf

::::::::::::::

provider "ncloud" {

support_vpc = true

region = "KR"

access_key = var.access_key

secret_key = var.secret_key

}

resource "ncloud_vpc" "vpc" {

name = var.server_name

ipv4_cidr_block = "10.0.0.0/20"

}

resource "ncloud_subnet" "pri_subnet1" {

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 3, 0)

zone = "KR-1"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PRIVATE"

name = var.pribate_subnet1

usage_type = "GEN"

}

resource "ncloud_subnet" "pub_subnet1" {

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4, 2)

zone = "KR-1"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PUBLIC"

name = var.public_subnet1

usage_type = "GEN"

}

resource "ncloud_subnet" "pri_lb_subnet1" {

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4, 6)

zone = "KR-1"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PRIVATE"

name = var.private_subnet_lb1

usage_type = "LOADB"

}

resource "ncloud_subnet" "subnet_pub_ls1" {

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4, 5)

zone = "KR-1"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PUBLIC"

name = var.public_subnet_lb1

usage_type = "LOADB"

}

resource "ncloud_subnet" "subnet_pri-db1" {

name = var.private_subnet_db1

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4 , 3)

zone = "KR-1"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PRIVATE"

// PUBLIC(Public) | PRIVATE(Private)

}

resource "ncloud_subnet" "subnet_pub-nat1" {

name = var.public_subnet_nat1

vpc_no = ncloud_vpc.vpc.id

subnet = cidrsubnet(ncloud_vpc.vpc.ipv4_cidr_block, 4 , 4)

zone = "KR-1"

network_acl_no = ncloud_vpc.vpc.default_network_acl_no

subnet_type = "PUBLIC"

usage_type = "NATGW"

// PUBLIC(Public) | PRIVATE(Private)

}

resource "ncloud_server" "pri_server1" {

name = var.private_server_name1

server_image_number = "107029409"

subnet_no = ncloud_subnet.pri_subnet1.id

server_spec_code = "c2-g3a"

login_key_name = "ncp-web-2025-0807"

}

resource "ncloud_server" "pub_server1" {

name = var.public_server_name1

server_image_number = "107029409"

subnet_no = ncloud_subnet.pub_subnet1.id

server_spec_code = "c2-g3a"

login_key_name = "ncp-web-2025-0807"

}

resource "ncloud_public_ip" "public_ip_scn_01" {

server_instance_no = ncloud_server.pub_server1.id

}

::::::::::::::

nat.tf

::::::::::::::

#db용 RT 생성

resource "ncloud_route_table" "route_table_pri1" {

name = var.private_db_rt1

vpc_no = ncloud_vpc.vpc.id

supported_subnet_type = "PRIVATE"

}

#db rt와 subnet 연결

resource "ncloud_route_table_association" "subnet_pri-db1" {

route_table_no = ncloud_route_table.route_table_pri1.id

subnet_no = ncloud_subnet.subnet_pri-db1.id

}

#kr-1 pri전용 라우팅 테이블 생성

resource "ncloud_route_table" "route_table_pri-kr1" {

name = "pri-rt-kr1"

vpc_no = ncloud_vpc.vpc.id

supported_subnet_type = "PRIVATE"

}

resource "ncloud_route_table_association" "subnet_pri-kr1" {

route_table_no = ncloud_route_table.route_table_pri-kr1.id

subnet_no = ncloud_subnet.pri_subnet1.id

}

resource "ncloud_route_table_association" "lb-subnet_pri-kr11" {

route_table_no = ncloud_route_table.route_table_pri-kr1.id

subnet_no = ncloud_subnet.pri_lb_subnet1.id

}

# NAT Gateway

resource "ncloud_nat_gateway" "nat_gateway_scn_01" {

vpc_no = ncloud_vpc.vpc.id

subnet_no = ncloud_subnet.subnet_pub-nat1.id

zone = "KR-1"

name = var.public_not_gateway1

}

# Route Table

resource "ncloud_route" "route_scn_01_nat" {

route_table_no = ncloud_route_table.route_table_pri-kr1.id

destination_cidr_block = "0.0.0.0/0"

target_type = "NATGW"

target_name = ncloud_nat_gateway.nat_gateway_scn_01.name

target_no = ncloud_nat_gateway.nat_gateway_scn_01.id

}

#db2 rt와 subnet 연결

resource "ncloud_route_table_association" "subnet_pri-db2" {

route_table_no = ncloud_route_table.route_table_pri1.id

subnet_no = ncloud_subnet.subnet_pri-db2.id

}

# NAT Gateway

resource "ncloud_nat_gateway" "nat_gateway_scn_02" {

vpc_no = ncloud_vpc.vpc.id

subnet_no = ncloud_subnet.subnet_pub-nat2.id

zone = "KR-2"

name = var.public_not_gateway2

}

# Route Table

resource "ncloud_route" "route_scn_02_nat" {

route_table_no = ncloud_vpc.vpc.default_private_route_table_no

destination_cidr_block = "0.0.0.0/0"

target_type = "NATGW"

target_name = ncloud_nat_gateway.nat_gateway_scn_02.name

target_no = ncloud_nat_gateway.nat_gateway_scn_02.id

}

::::::::::::::

var.tf

::::::::::::::

variable client_ip {

default = "211.188.53.77"

}

variable access_key {

default = "ncp_iam_BPA6kR"

}

variable secret_key {

default = "ncp_iam_BPKMKRFXtJ"

}

variable "server_name" {

type = string

default = "agame-dev-vpc"

}

variable "pribate_subnet1" {

type = string

default = "pri1"

}

variable "public_subnet1" {

type = string

default = "pub1"

}

variable "private_subnet_db1" {

type = string

default = "pri-db1"

}

variable "public_subnet_nat1" {

type = string

default = "pub-nat1"

}

variable "public_subnet_lb1" {

type = string

default = "pub-lb1"

}

variable "private_subnet_lb1" {

type = string

default = "pri-lb1"

}

variable "private_db_rt1" {

type = string

default = "db-rt1"

}

variable "public_not_gateway1" {

type = string

default = "pub-nat1"

}

variable "private_server_name1" {

type = string

default = "pri-srv1"

}

variable "public_server_name1" {

type = string

default = "pub-srv1"

}

variable "pribate_subnet2" {

type = string

default = "pri2"

}

variable "public_subnet2" {

type = string

default = "pub2"

}

variable "private_subnet_db2" {

type = string

default = "pri-db2"

}

variable "public_subnet_nat2" {

type = string

default = "pub-nat2"

}

variable "public_subnet_lb2" {

type = string

default = "pub-lb2"

}

variable "private_subnet_lb2" {

type = string

default = "pri-lb2"

}

variable "private_db_rt2" {

type = string

default = "db-rt2"

}

variable "public_not_gateway2" {

type = string

default = "pub-nat2"

}

variable "private_server_name2" {

type = string

default = "pri-srv2"

}

variable "public_server_name2" {

type = string

default = "pub-srv2"

}

::::::::::::::

ver.tf

::::::::::::::

terraform {

required_providers {

ncloud = {

source = "navercloudplatform/ncloud"

}

}

required_version = ">= 0.13"

}

[root@test1 2]#

# 콘솔로 네트워크 구축하기

https://brunch.co.kr/@topasvga/5005
