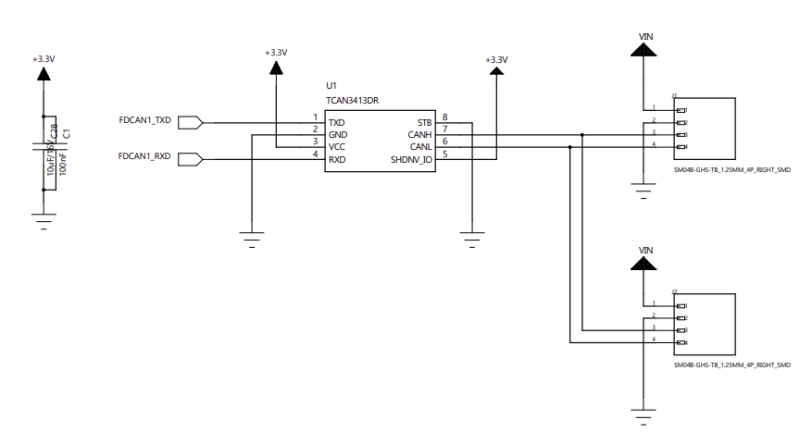

                            <p id="SE-7622c488-eaeb-4a6a-84f4-0f5bdde320ef"><span id="SE-160c1ba5-51a2-4fa5-ac33-2541b0b198a3">2804 사이즈 소형 BLDC 키트에 사용할 제어 보드를 제작 중이다.</span></p>
                        </div>                <div id="SE-16b22436-72db-4dda-8246-56f246b76d8c">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-16b22436-72db-4dda-8246-56f246b76d8c&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfMjc2/MDAxNzgyNjEwNjM3MjQ4.BHHAxjQxrMl2boUutYkDGz-j37Vle38ysatkVVbJeXwg.4yCqWHbuly3Qqbxs6uLNgzbUJsgssJL24grxzCHbs3wg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;864&quot;, &quot;originalHeight&quot; : &quot;467&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot;, &quot;fileSize&quot;: &quot;32897&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfMjc2/MDAxNzgyNjEwNjM3MjQ4.BHHAxjQxrMl2boUutYkDGz-j37Vle38ysatkVVbJeXwg.4yCqWHbuly3Qqbxs6uLNgzbUJsgssJL24grxzCHbs3wg.PNG/image.png?type=w800" data-width="693" data-height="374" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-f6dedb6a-e6ba-4b13-bb0b-b3271ceb6ef2">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-f6dedb6a-e6ba-4b13-bb0b-b3271ceb6ef2&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfNDcg/MDAxNzgyNjEwNjQ1OTQx.rJZR2VVQqG-Gj_fgB93IwlOWofG3kDPh7AAIo3ZTSPcg.U8IQ2QGrqtmhAri-nDeLm6lNMvSakigHWbtRa-OamA4g.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;623&quot;, &quot;originalHeight&quot; : &quot;411&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot;, &quot;fileSize&quot;: &quot;32144&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfNDcg/MDAxNzgyNjEwNjQ1OTQx.rJZR2VVQqG-Gj_fgB93IwlOWofG3kDPh7AAIo3ZTSPcg.U8IQ2QGrqtmhAri-nDeLm6lNMvSakigHWbtRa-OamA4g.PNG/image.png?type=w800" data-width="623" data-height="411" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-df4f0195-cd7e-4d8c-b9cf-292e64f82df8">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-cc525f87-e4f0-4a4a-a62e-d9ad9b3aeff6&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfMTM2/MDAxNzgyNjEwNjUwMTg2.rCzKdqLaGgwi2-nERleze-fUjDN1fXLmXbIofguvuTAg.mbyp1bEbmovJcc8Oo1vER2zyN1ZOs3vmpJEVzGRuxxcg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;448&quot;, &quot;originalHeight&quot; : &quot;321&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot;, &quot;fileSize&quot;: &quot;8571&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfMTM2/MDAxNzgyNjEwNjUwMTg2.rCzKdqLaGgwi2-nERleze-fUjDN1fXLmXbIofguvuTAg.mbyp1bEbmovJcc8Oo1vER2zyN1ZOs3vmpJEVzGRuxxcg.PNG/image.png?type=w400" data-width="448" data-height="321" alt="">
                                    </a>
                                </p>
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-e5023fb4-ebbd-4ce2-b4e5-7c2b8b587e89&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfNTAg/MDAxNzgyNjEwNjU1NzQ2.N4HsX5VIkSx95m2M47LVTKx200jfd0QbdJjdTl_HelMg.ESREGZXk0-QU6QjFzo3oC34LLHYm7ZeD7IZgBkcfnwkg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;370&quot;, &quot;originalHeight&quot; : &quot;280&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot;, &quot;fileSize&quot;: &quot;6611&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfNTAg/MDAxNzgyNjEwNjU1NzQ2.N4HsX5VIkSx95m2M47LVTKx200jfd0QbdJjdTl_HelMg.ESREGZXk0-QU6QjFzo3oC34LLHYm7ZeD7IZgBkcfnwkg.PNG/image.png?type=w400" data-width="370" data-height="280" alt="">
                                    </a>
                                </p>
                            </div>                <div id="SE-c971a91c-96a8-4f06-9f65-531bb60637e7">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-c971a91c-96a8-4f06-9f65-531bb60637e7&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfOTkg/MDAxNzgyNjEwNjY1NjEy.gr2Kd2zxXQdpqqNVPUEoTGiPwaieCSfw5rT9_f967ygg.5A-8EZffsi5Kl9kwPFgOIOpa0U0-lNkGPVK5rLKneOsg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;1246&quot;, &quot;originalHeight&quot; : &quot;714&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot;, &quot;fileSize&quot;: &quot;103943&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfOTkg/MDAxNzgyNjEwNjY1NjEy.gr2Kd2zxXQdpqqNVPUEoTGiPwaieCSfw5rT9_f967ygg.5A-8EZffsi5Kl9kwPFgOIOpa0U0-lNkGPVK5rLKneOsg.PNG/image.png?type=w800" data-width="693" data-height="397" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-e4fafc5a-847a-4d9b-b918-7ed76d5ca56c">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-e4fafc5a-847a-4d9b-b918-7ed76d5ca56c&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfOTUg/MDAxNzgyNjEwNjcyMzY2.V5UDqlxCpGL2Z-_MCAojeADo_xe1-f_dm2tfE132gxkg.hZ40vs2hsxMeUwwe_KI4DL-tyogoQ_X835XBW7ZKGQMg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;712&quot;, &quot;originalHeight&quot; : &quot;617&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot;, &quot;fileSize&quot;: &quot;56582&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfOTUg/MDAxNzgyNjEwNjcyMzY2.V5UDqlxCpGL2Z-_MCAojeADo_xe1-f_dm2tfE132gxkg.hZ40vs2hsxMeUwwe_KI4DL-tyogoQ_X835XBW7ZKGQMg.PNG/image.png?type=w800" data-width="693" data-height="600" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-524af396-5244-46ba-81da-d3a67d5eba24">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-524af396-5244-46ba-81da-d3a67d5eba24&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfNjMg/MDAxNzgyNjEwNjc5MzUw.T2C7Bg-J9AbL3uWGykoUVMLaB6qKGTytlaoCpxFzTJ0g.mfS0Dz2NisnFFaM8A0frrchVZLDoO3FwCHtKK7snmwwg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;804&quot;, &quot;originalHeight&quot; : &quot;553&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot;, &quot;fileSize&quot;: &quot;60948&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfNjMg/MDAxNzgyNjEwNjc5MzUw.T2C7Bg-J9AbL3uWGykoUVMLaB6qKGTytlaoCpxFzTJ0g.mfS0Dz2NisnFFaM8A0frrchVZLDoO3FwCHtKK7snmwwg.PNG/image.png?type=w800" data-width="693" data-height="476" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-8781295b-5200-4172-93ce-e6a7f6bd48fb">
                                    <p id="SE-966bc421-6ed2-4b82-89ec-bf46f2331f27"><span id="SE-7a6e6692-261b-46b9-831e-0c8f2a0e006b">​</span></p>
<p id="SE-fa1b5274-3d9b-4ec8-ad58-39cac72592b4"><span id="SE-b1c6cae8-dcb4-44de-bd61-75bd6365cb3f">STM32G431 기반에 </span></p>
<p id="SE-45d0fe1a-777f-47bc-961c-346b1d955e40"><span id="SE-58b50712-a302-4112-9a9e-8ad4dbb5afb6">DRV8311 BLDC 드라이버가 포함되고 CAN-FD를 지원한다.</span></p>
<p id="SE-5e762393-5478-4ea5-9d10-f8ddd8a656f1"><span id="SE-a09aa5df-62e6-4121-a135-e7f8e42fe33c">엔코더는 원 제품에 포함된 보드를 그대로 사용하며 PCB 크기 또한 원 엔코더 보드 위에 그대로 채결할 수 있게 구성하였다.</span></p>
<p id="SE-bd53c3ed-58f0-4e07-9c79-23ffb9e82150"><span id="SE-b9a3204c-fc12-4d5c-a1bf-61f8dc007f7c">​</span></p>
<p id="SE-605ed037-36ba-4475-9359-1f8ea7b725aa"><span id="SE-6cbe6b6f-9175-4297-b15b-f541e061b51d">이번 제품은 아무래도 로봇에 사용할 목적이 강해 3D 데이터도 제공할 예정이다.</span></p>

                            </div>                <div id="SE-96cf2ea0-e8d9-4045-be02-87af3378fdde">
                                <p><a href="#" onclick="return false;" data-linktype="img" data-linkdata="{&quot;id&quot; : &quot;SE-96cf2ea0-e8d9-4045-be02-87af3378fdde&quot;, &quot;src&quot; : &quot;https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfMjUy/MDAxNzgyNjExMDI3Mjc5.pp7tRUJE2lq6pCuBr_Vasn6LYhklydBYcJMVvzF_bikg.6D6PY3pbBLFKmLIt7q34vX5BrU61li4xTZYp42LM1QMg.PNG/image.png&quot;, &quot;originalWidth&quot; : &quot;704&quot;, &quot;originalHeight&quot; : &quot;279&quot;, &quot;linkUse&quot; : &quot;false&quot;, &quot;link&quot; : &quot;&quot;, &quot;fileSize&quot;: &quot;145070&quot; }">
                                        <img src="https://mblogthumb-phinf.pstatic.net/MjAyNjA2MjhfMjUy/MDAxNzgyNjExMDI3Mjc5.pp7tRUJE2lq6pCuBr_Vasn6LYhklydBYcJMVvzF_bikg.6D6PY3pbBLFKmLIt7q34vX5BrU61li4xTZYp42LM1QMg.PNG/image.png?type=w800" data-width="693" data-height="274" alt="">
                                    </a>
                                </p>
                        </div>
                <div id="SE-27958ea8-fe57-49ef-adc2-b2c0fee91f4e">
                            <p id="SE-5886a01a-fefb-4336-92ae-241f254aeb09"><span id="SE-9b07debc-e67d-4ffd-bd54-b4c5d1559c83">마지막 아직 전원+CAN-FD 커넥터와 BLDC 커넥터를 사이트 형태로 배치해야 하는 것 때문에 고민 중이다.</span></p>
                        </div>    </div></div>

하이! 제니스

소형 BLDC 2804 https://smartstore.naver.com/higenis/products/11535394328 2804 사이즈 소형 BLDC 키트에 사용할 제어 보드를 제작 중이다. STM32G431 기반에 DRV8311 BLDC 드라이버가 포함되고 CAN-FD를 지원한다. 엔코더는 원 제품에 포함된 보드를 그대로 사용하며 PCB 크기 또한 원 엔코더 보드 위에 그대로 채결할 수 있게 구성하였다. 이번 제품은 아무래도 로봇에 사용할 목적이 강해 3D 데이터도 제공할 예정이다. 마지막 아직 전원+CAN-FD 커넥터와 BLDC 커넥터를 사이트 형태로 배치해야 하는 것 때문에 고민 중이다.

STM32G4-SimpleFoc 샘플 제작 중
